Product Center
Clay bath
BACK

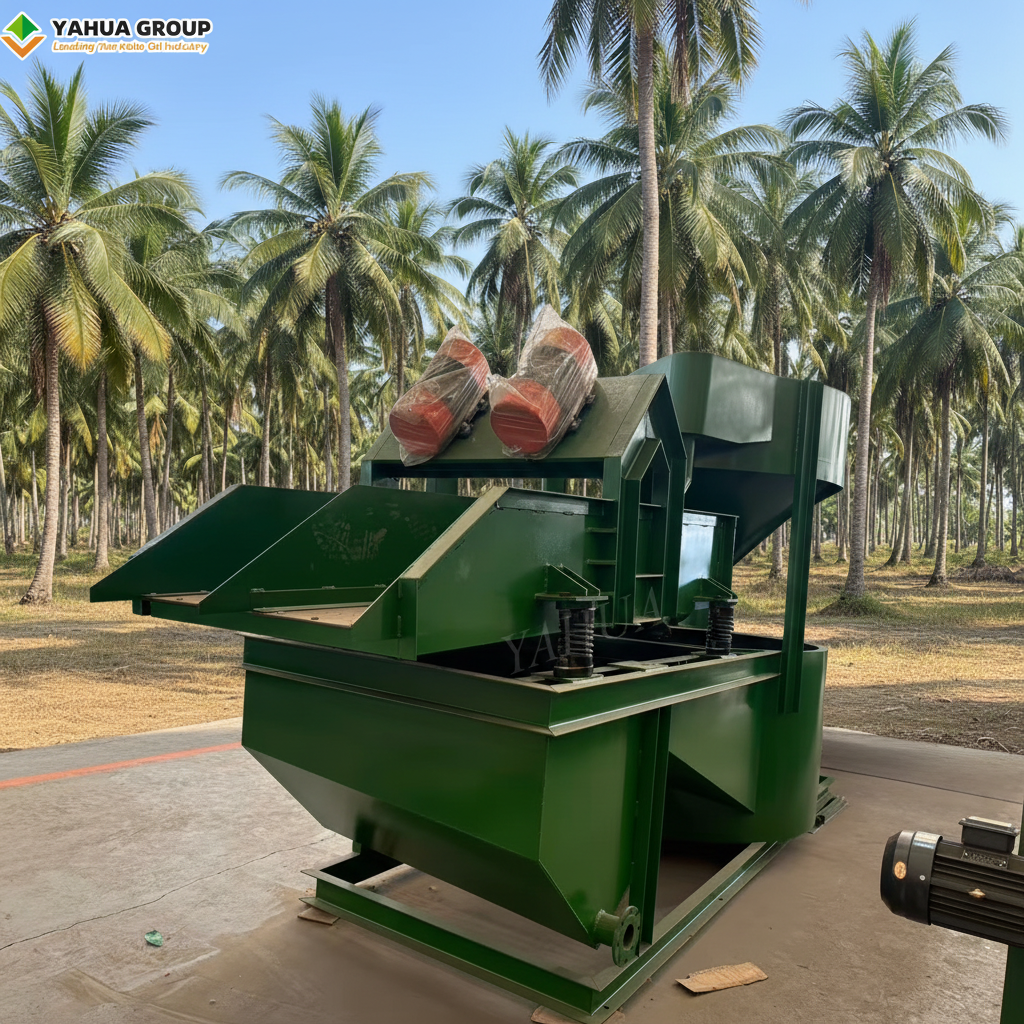

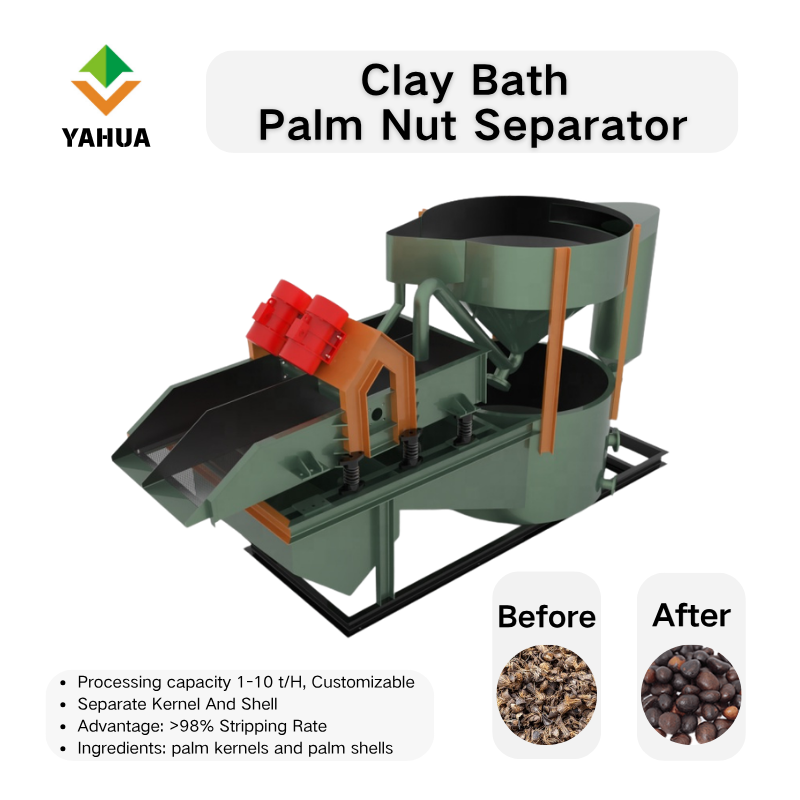

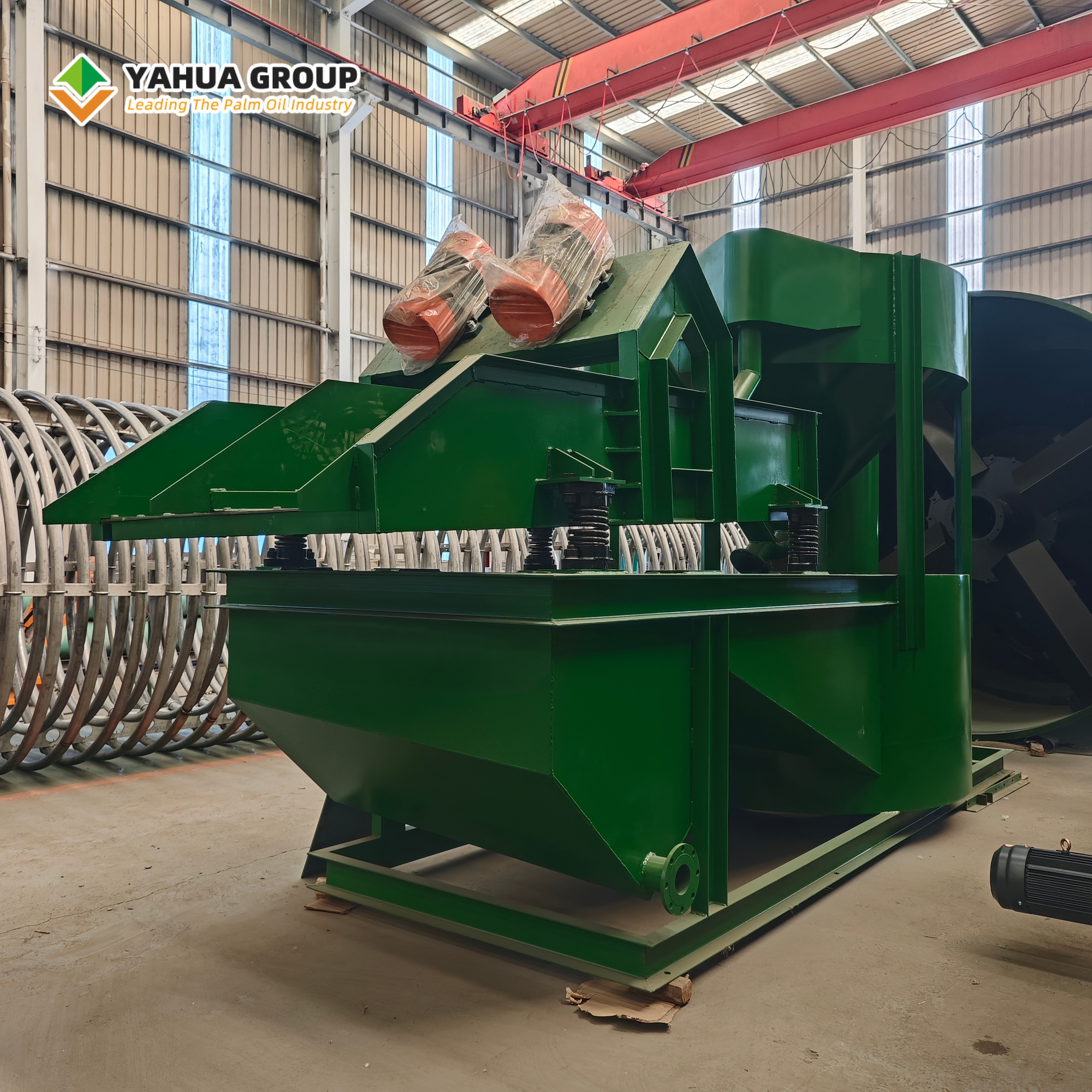

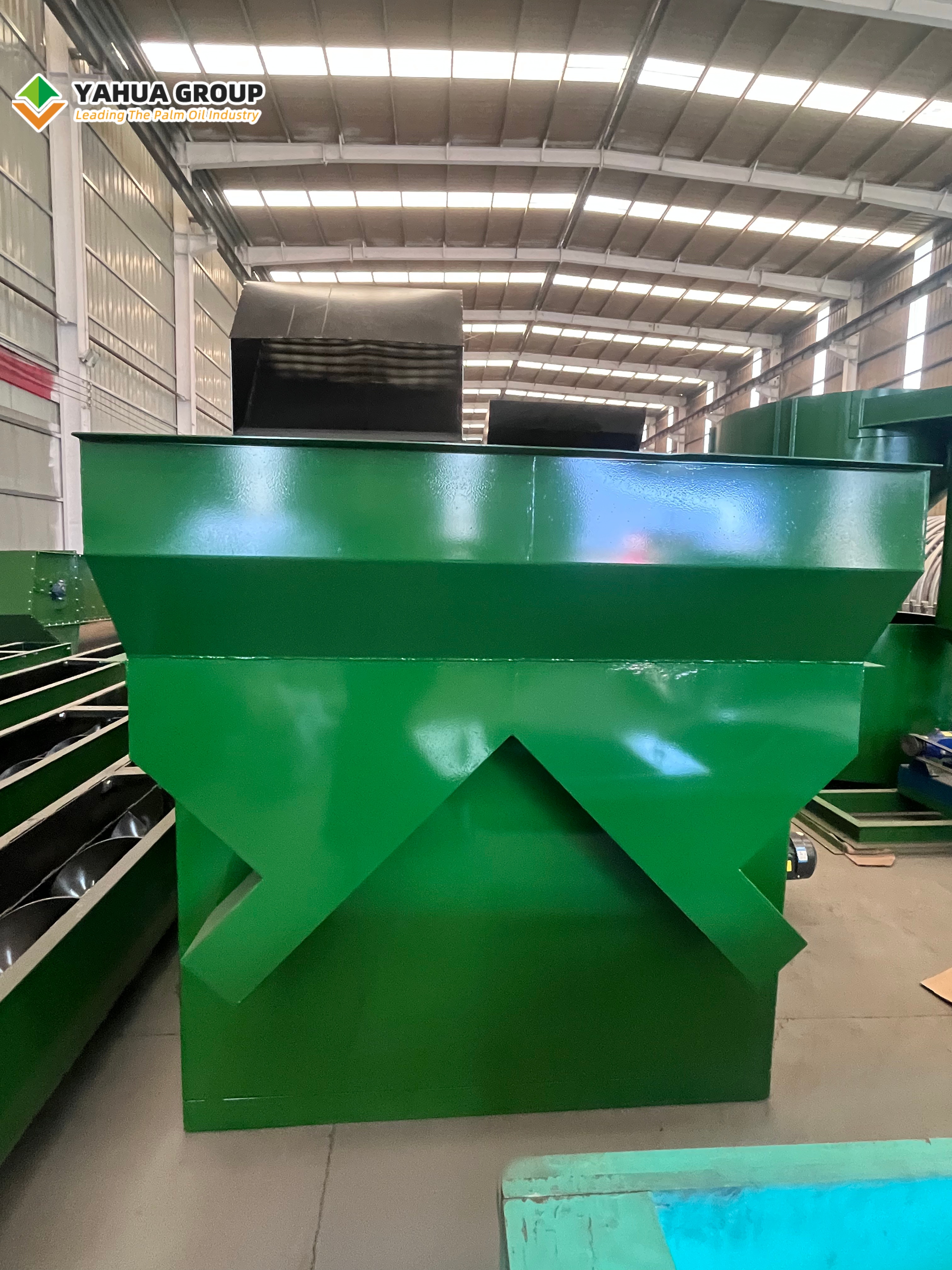

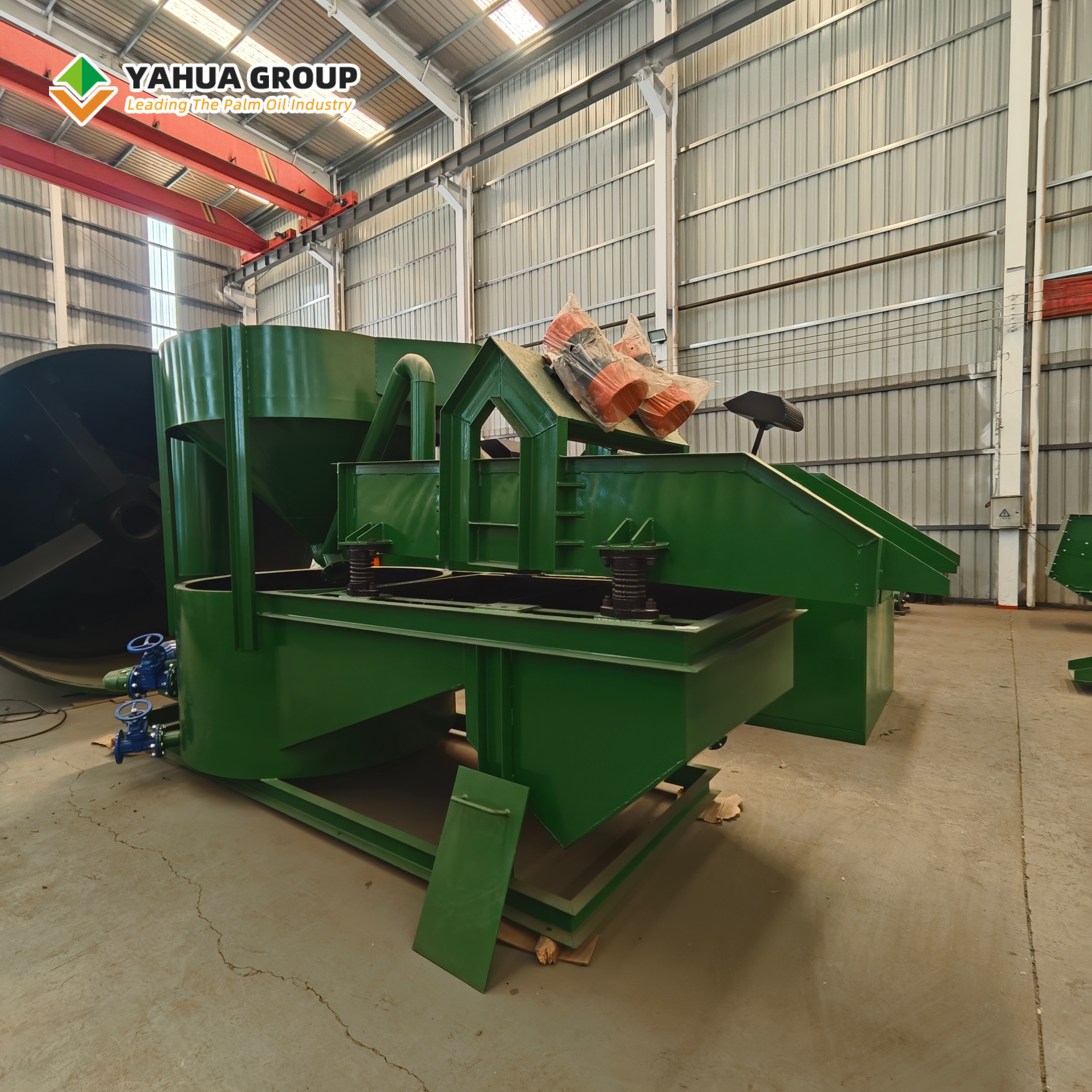

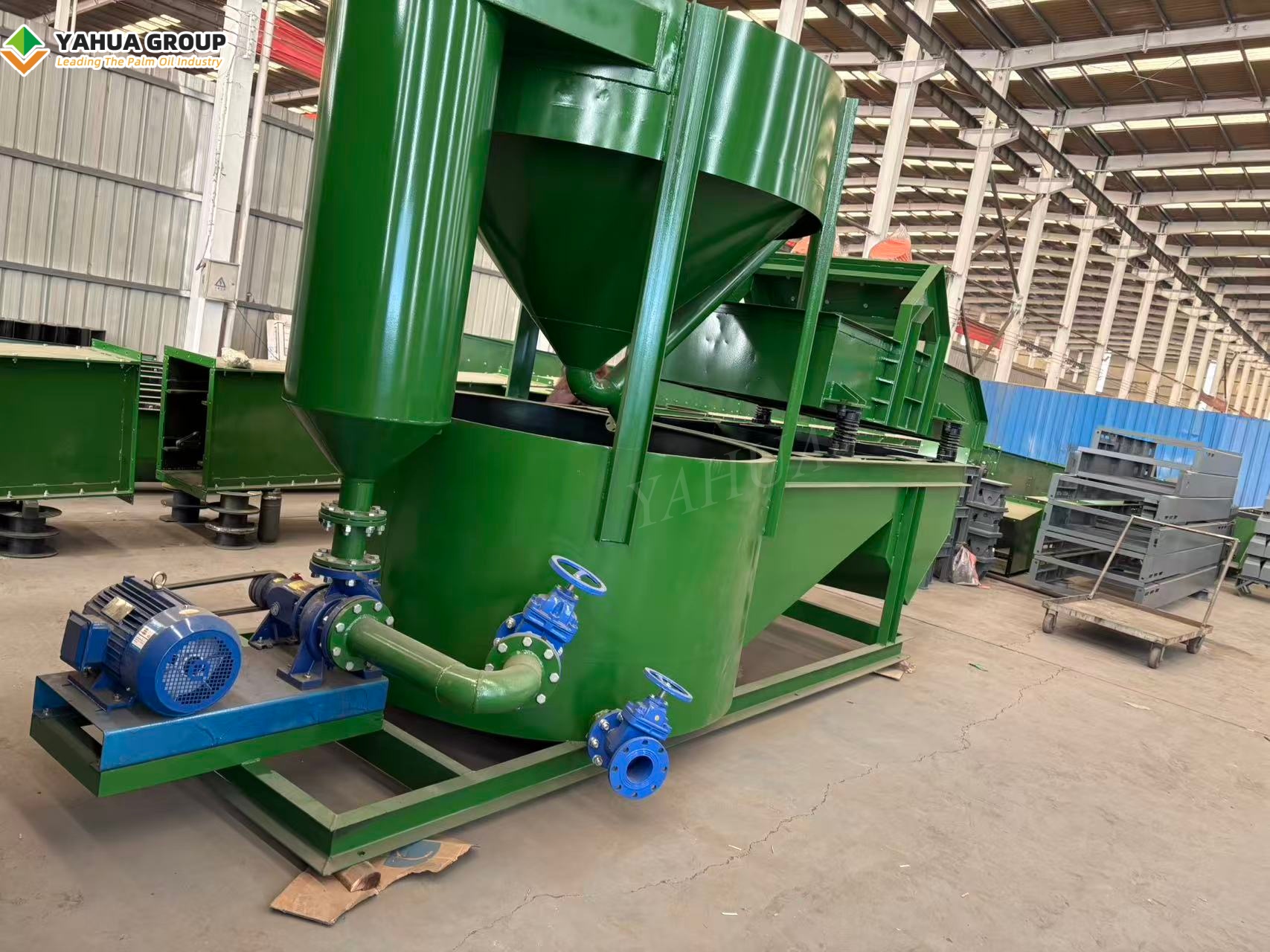

Clay bath
Equipment Name
Clay bath
Function
Separate Kernel and shell using air separation method.
Working method
Gravity/Centrifugal (Solution gravity kernel-shell separation system)
Material
Carbon steel/SS304
CaCO3pump
40 m³/hr H=8m 4kw 380V 50Hz Centrifuge Type
Stirrer power
1.5kw 380V 50Hz speed 8rpm
Screen power
2.2kwx2 380V 50Hz Vibration motor
Capacity
7ton/hr
Screen hole
φ4mm SS304
