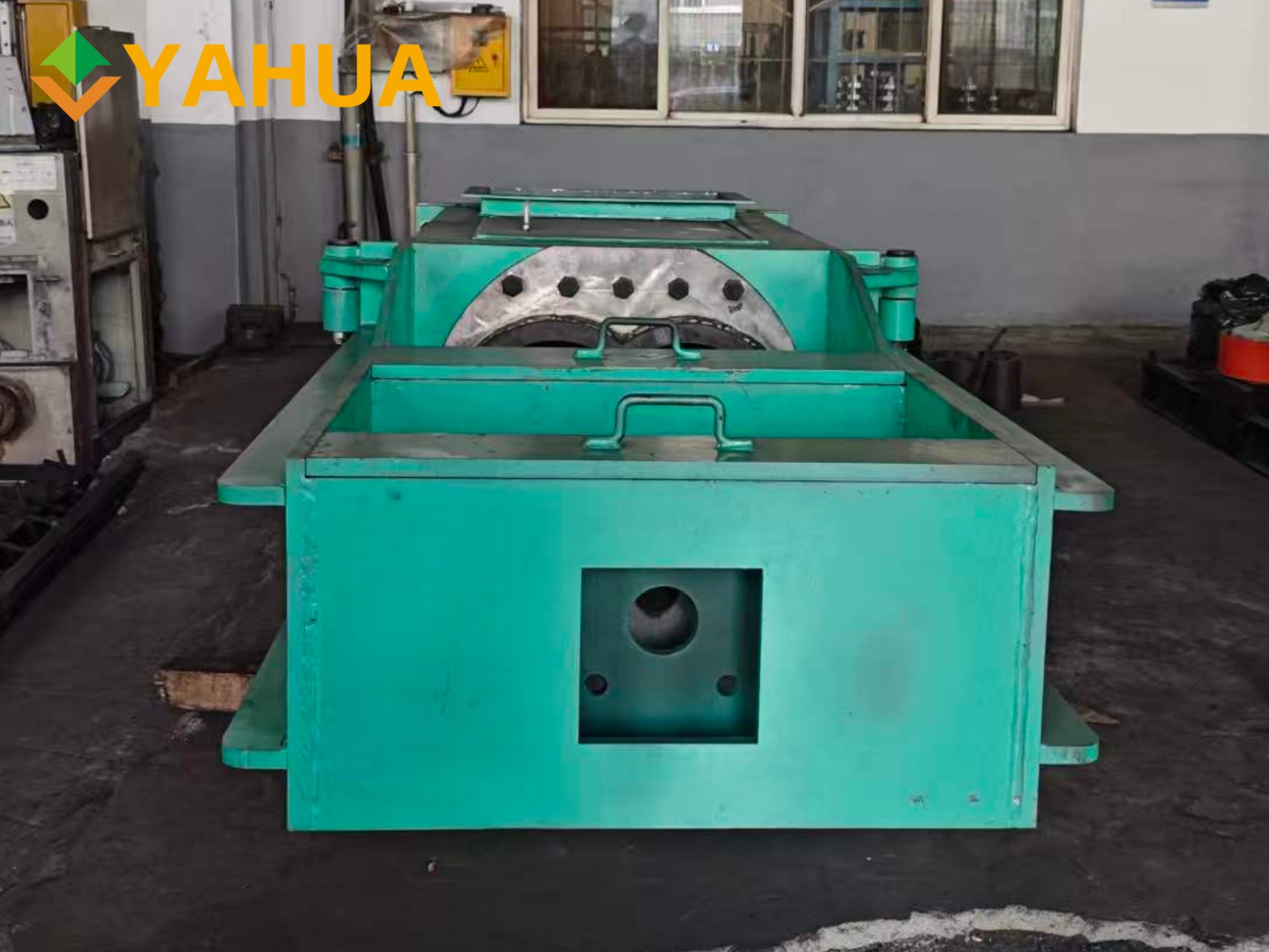

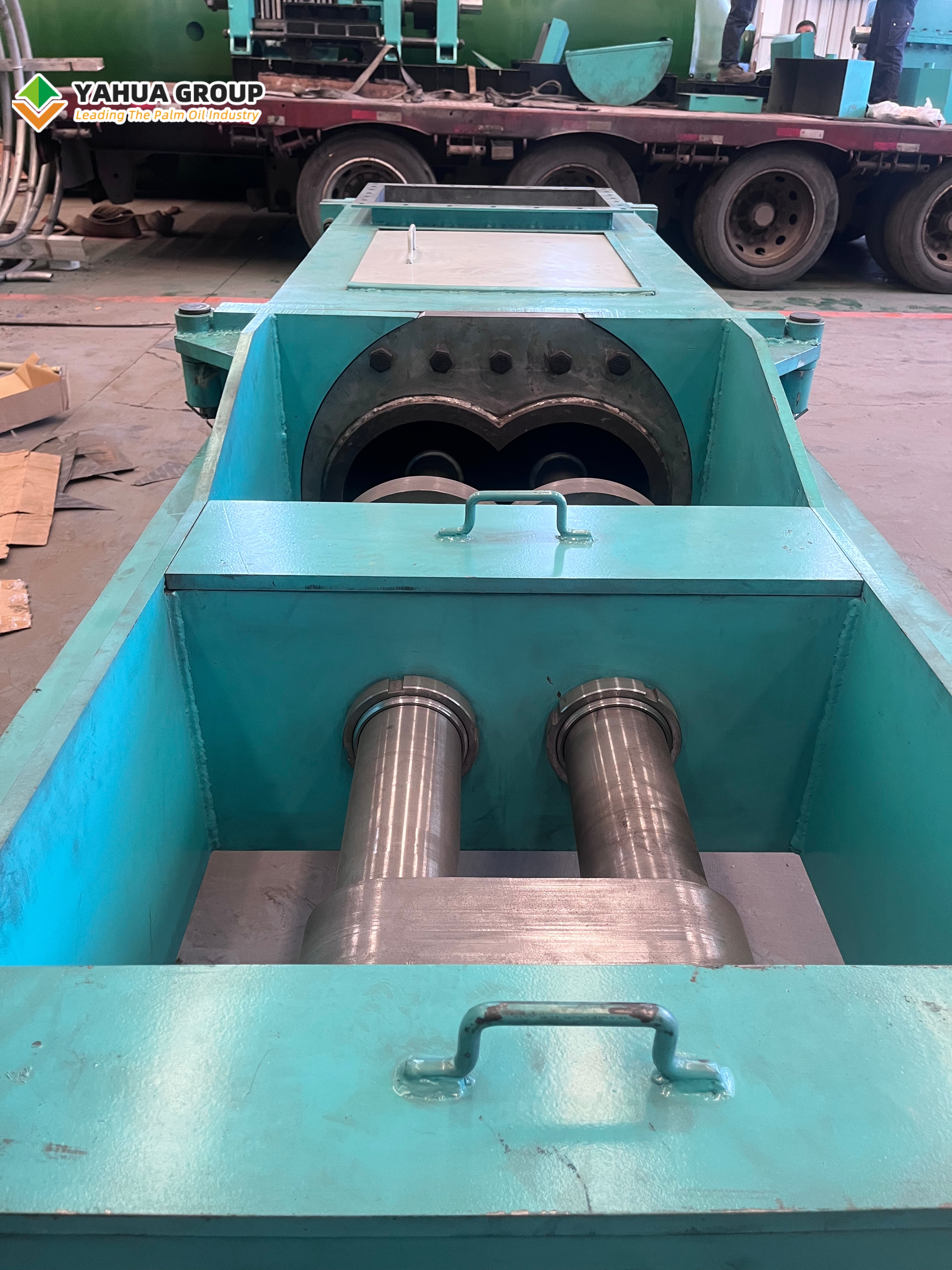

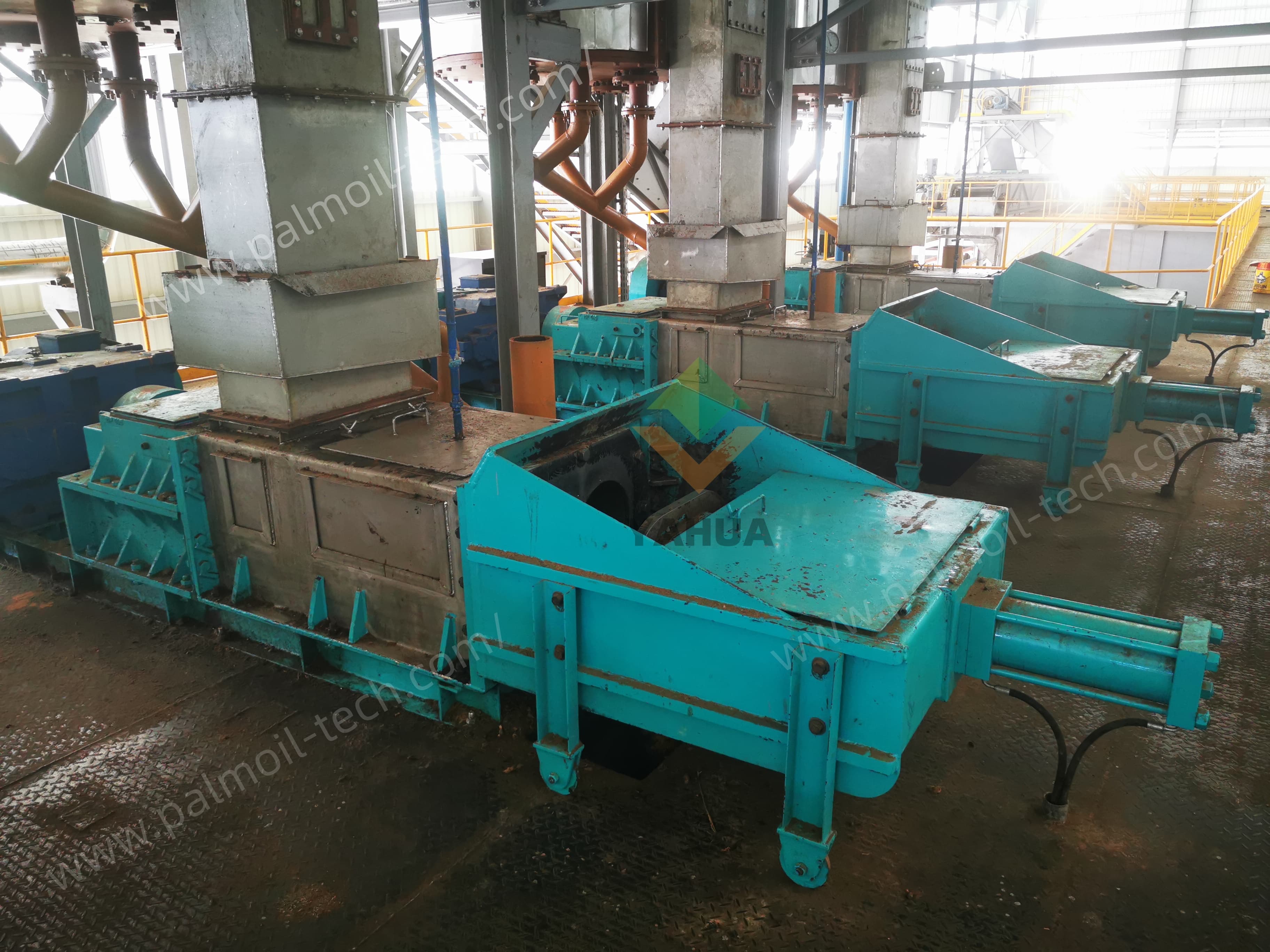

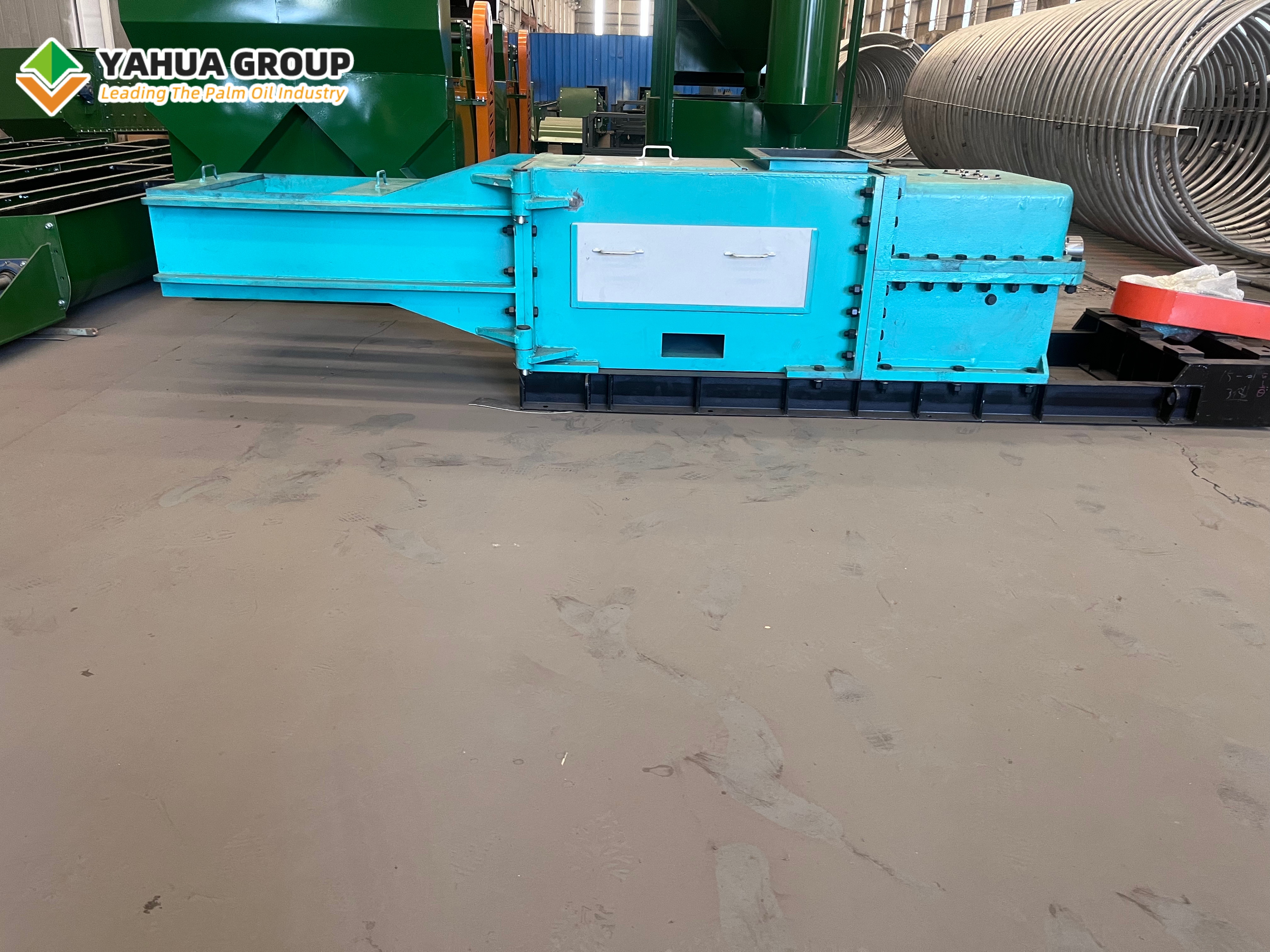

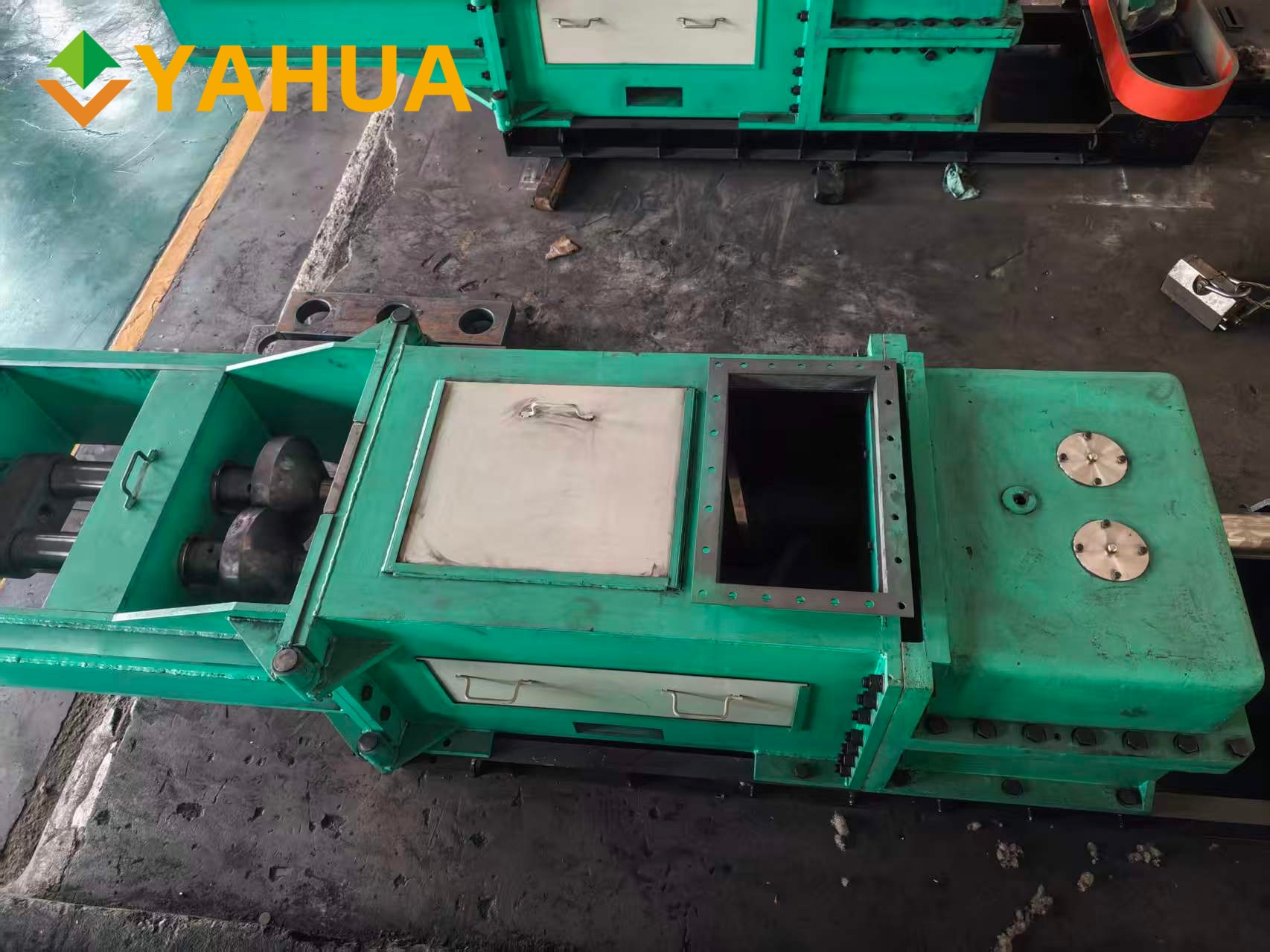

Equipment Name: Palm Fruit presser | ||||
Function：Got the palm Crude oil and palm cake from palm Fruit pulp by double Screw press | ||||
Raw material condition：palm Fruit pulp Temperature：90-95℃ | ||||
Process：1 times double screw press | ||||
Pressure regulation：hydraulic power | ||||
Item | Model | |||
YHP-10 | YHP-15 | YHP-20 | ||
Capacity FFB ton/hr | 10 | 15 | 20 | |
Power kw 380V/3P/50Hz | 22 | 30 | 37 | |
Shaft Speed rpm/min | 10~13 | 10~13 | 11~14 | |
After press oil loss % | 7-8 | 7-8 | 7-8 | |
Driver connect Model | Coupling | Coupling | Coupling | |
Dimension | L（mm） | 5150 | 5430 | 5500 |
W（mm） | 950 | 950 | 1150 | |
H（mm） | 960 | 960 | 1100 | |
Weight | kg | 4800 | 5500 | 6100 |
Speciality | 1. The worms is made of alloy material 2. Cage adopts Flat hole type, which is more firm and not easy to block 3. Worms can be processed multiple times using wear-resistant welding rods for melting and multiple uses 4. Worms has a long span of 1200 hours | |||
Payment | 1.30% down payment after Sign contract 2.70% before delivery 3. this price keep one month 4. Delivery time 60 days | |||
