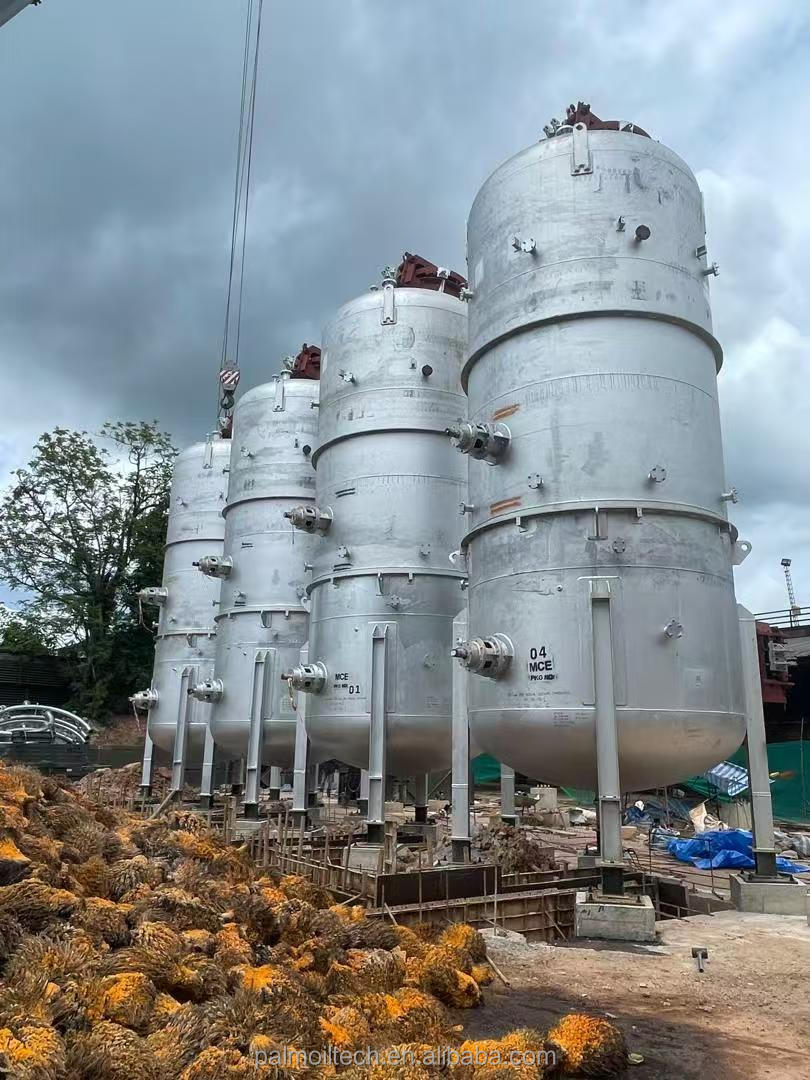

Vertical Sterilizer Tank
Equipment Name
Vertical Sterilizer Tank
Function
To sterilize palm fresh fruit bunch using steam as sterilizing medium.
Working pressure
3.5kg/cm2
Working temperature
135℃
Steam consumption
200-250kg/ton FFB
Sterilization time
50-55 min/Cycle
Outside diameter
2800mm/3200mm
Capacity
25ton (FFB)/unit
Discharge method
By self/By Screw
Sealing method
Hydraulic door
Size door
1200mm
Control system
PLC Auto Control
