1.The Shaft is made of seamless pipe and solid shaft(aisi4140)
2.Cage adopts Flat noddles type use round bar
3. Hammer Material is wear-resistant (NM400) and multiple uses
4. Hammer has a long span of 800 hours

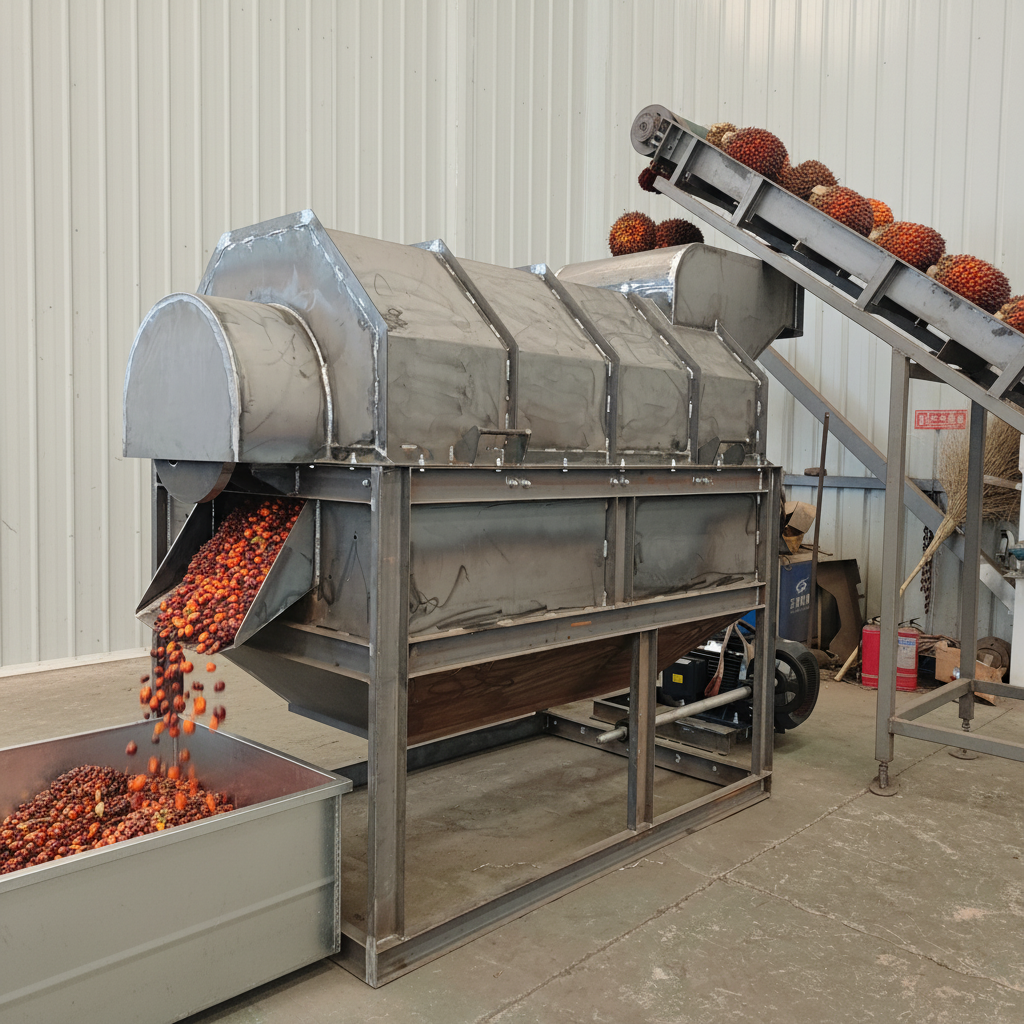

5. Slap the palm fresh fruit directly into the centrifugation, so that the fruit grains will fall off from the fruit string! Make the subsequent processing of fruit grains easier, reduce steam consumption, and reduce equipment investment! The empty fruit string does not participate in the follow-up sterilization and defruit removal sections!
Item | Model | ||
YHSP-6 | YHEP-10 | ||
Capacity FFB ton/hr | 6 | 10 | |
Power kw 380V/3P/50Hz | 15 | 22 | |
Shaft Speed rpm/min | 280-300 | 280-300 | |
Cage Diameter mm: | 1200 | 1500 | |
After process Fruit remain % | 0-2% | 0-2% | |
Driver connect Model | Pulley+V-belt | Pulley+V-belt | |
Dimension | L（mm） | 2960 | 3260 |
W（mm） | 1330 | 1680 | |
H（mm） | 2100 | 2550 | |
Weight | kg | 1500 | 2200 |
