Product Center
Pressure Leaf filter
BACK

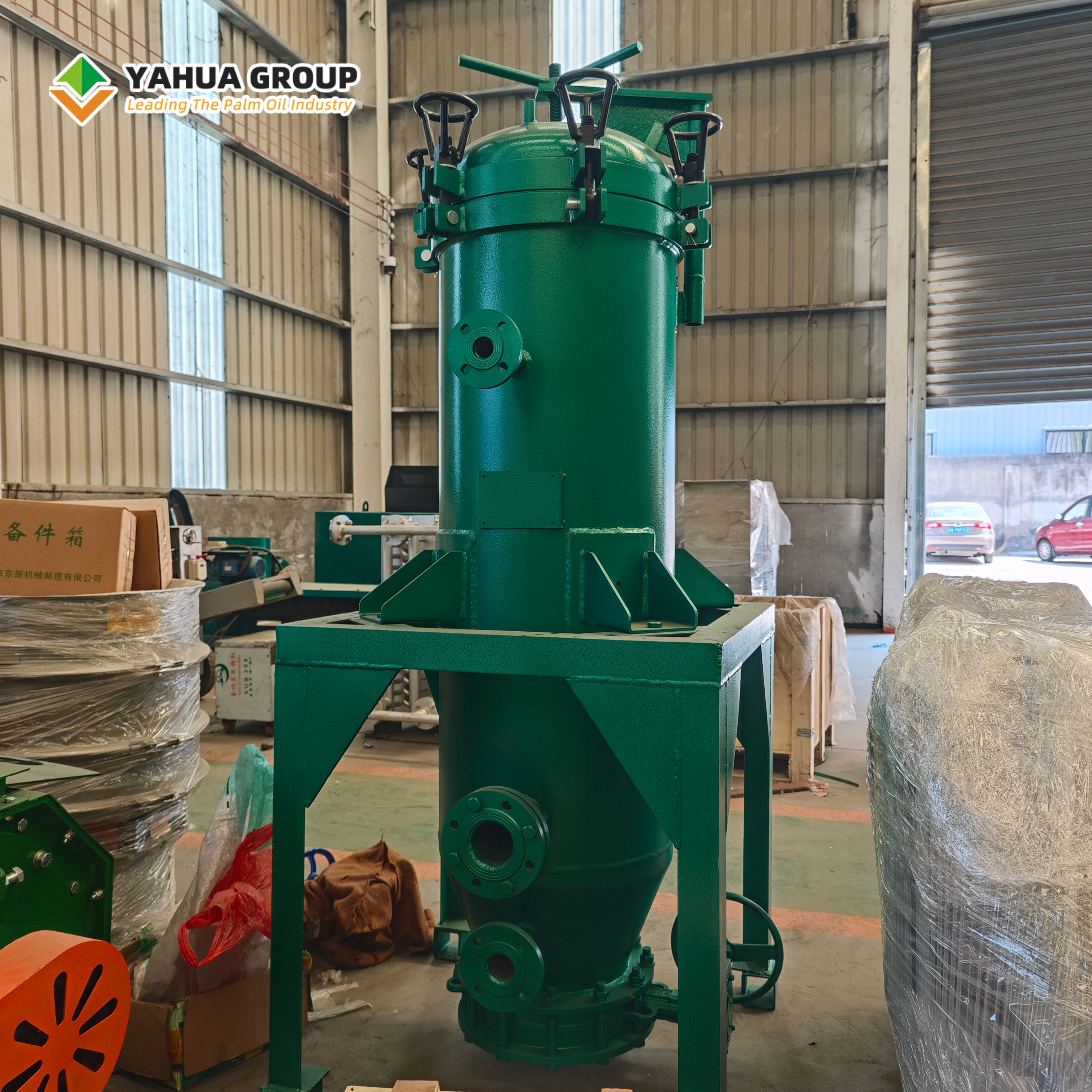

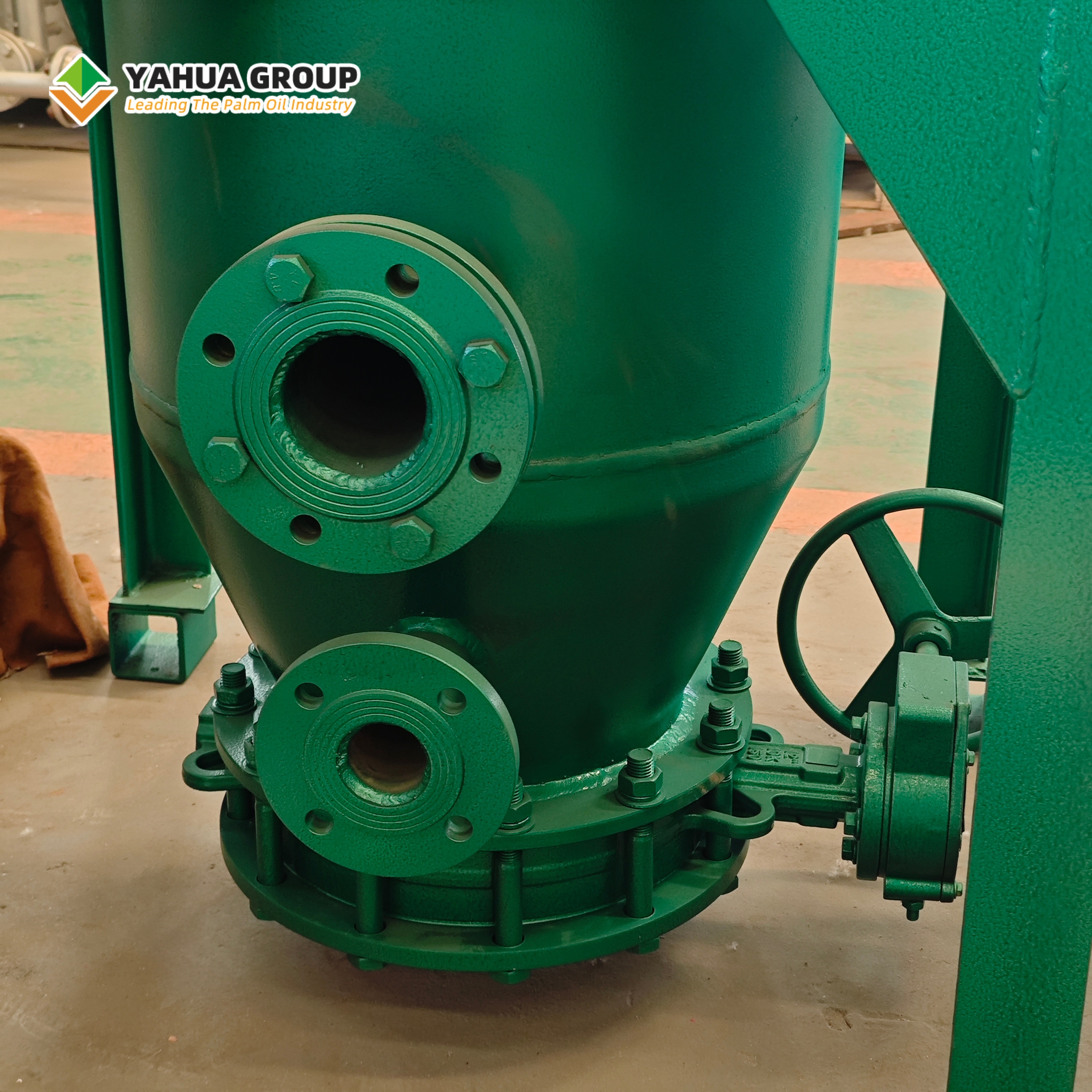

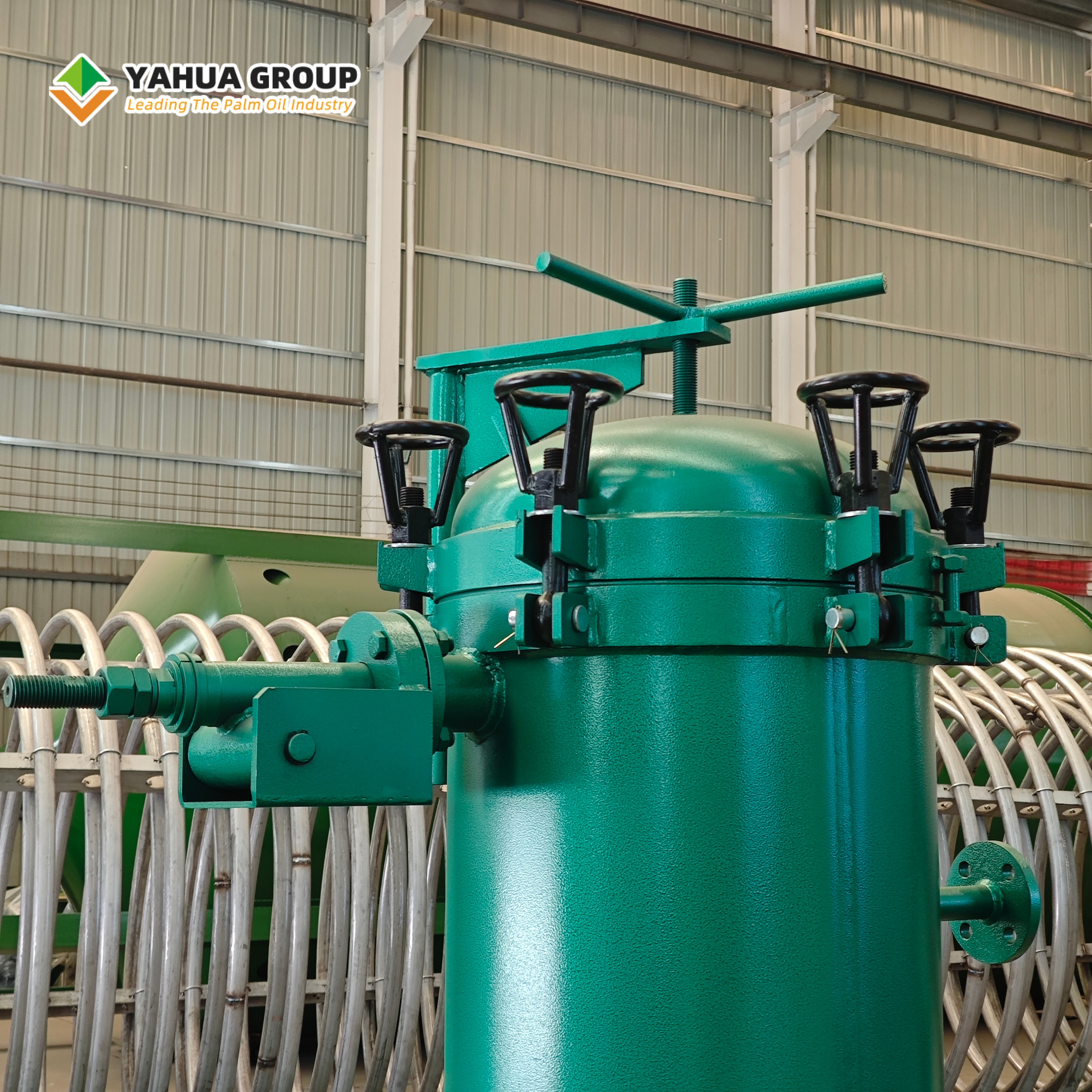

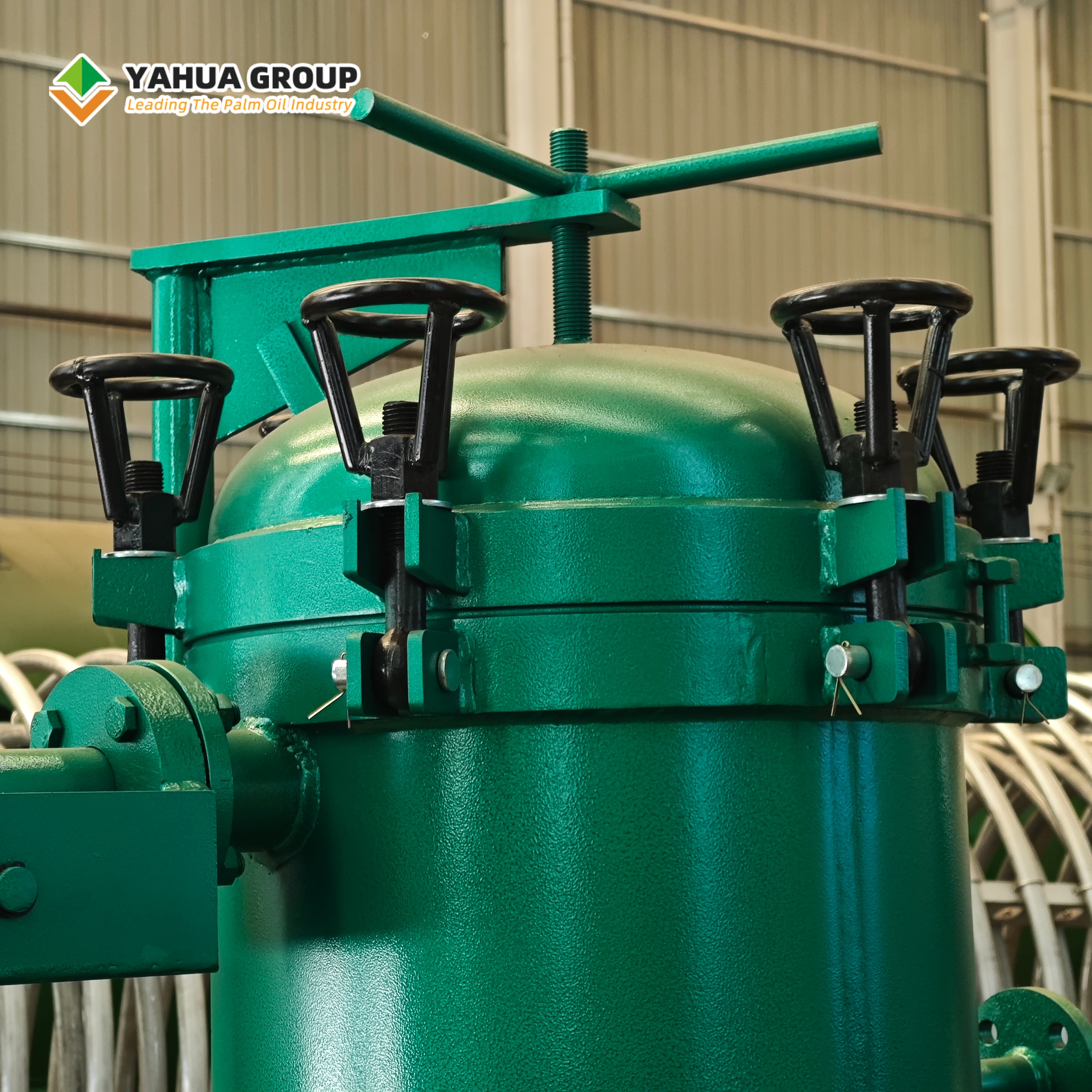

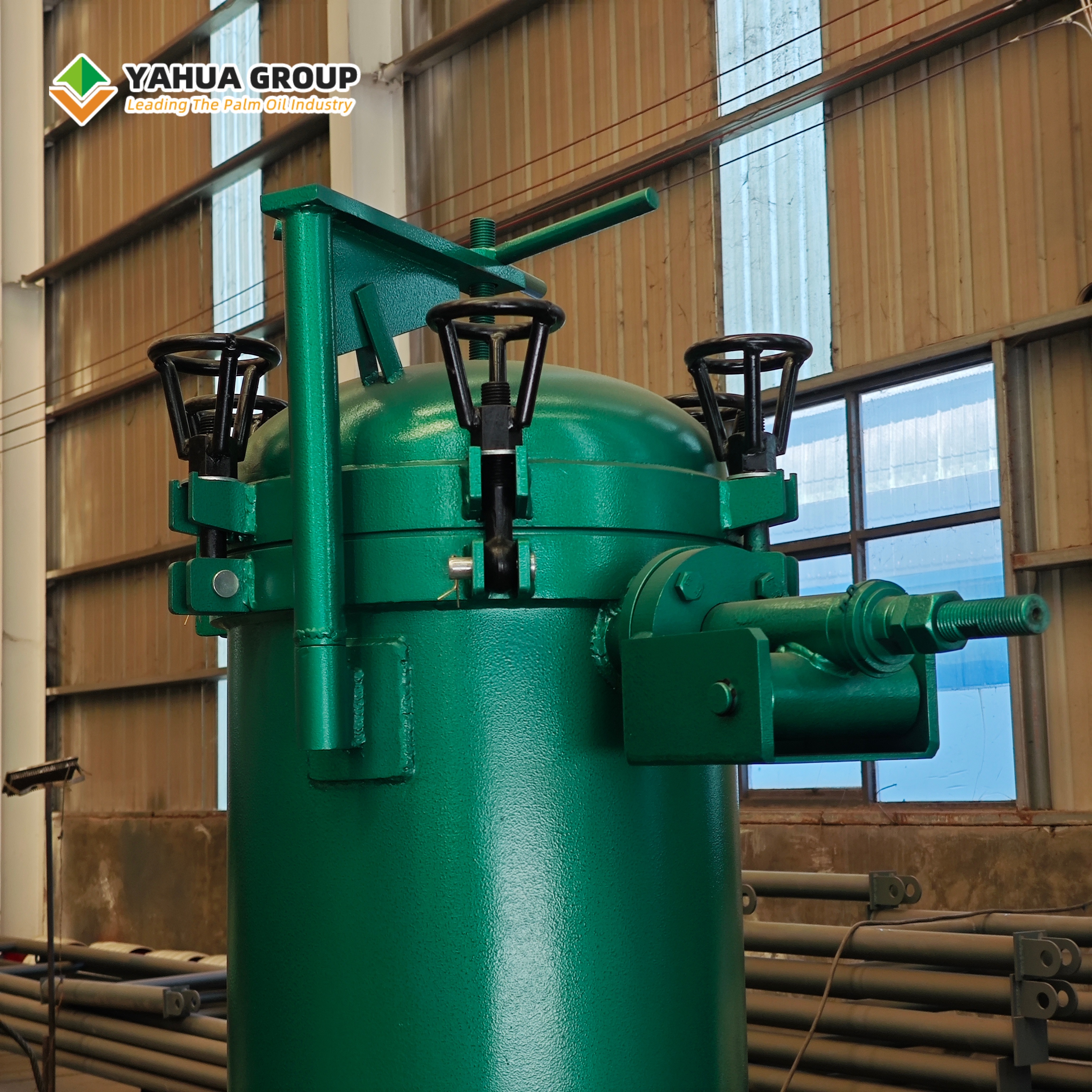

Pressure Leaf filter
Equipment Name
Pressure Leaf filter
Type
Vertical/Horizontal
Function
Filter and separate solids and liquids in the solvent (filter and separate oil residue in palm kernel oil; filter and separate decolorized clay in oil refining)
Material
Carbon Steel/Stainless Steel 304
Workflow
Feed → Filter → Discharge
Components
tank body, filter blades, pipes, and valves
Slag discharge method
vibration/centrifugation
Filter area
20 ㎡ -60 ㎡
Work pressure
5kg/cm3
Production
1-8 tons/hour
Power
Squirrel cage motor 1450 rpm. 380V 50Hz
